Dim Switch for Source Offroad x Baja Designs XL Light

Dim Switch

Fits: ALL Source Offroad x Baja Designs XL Lights (XLpro and XL80)

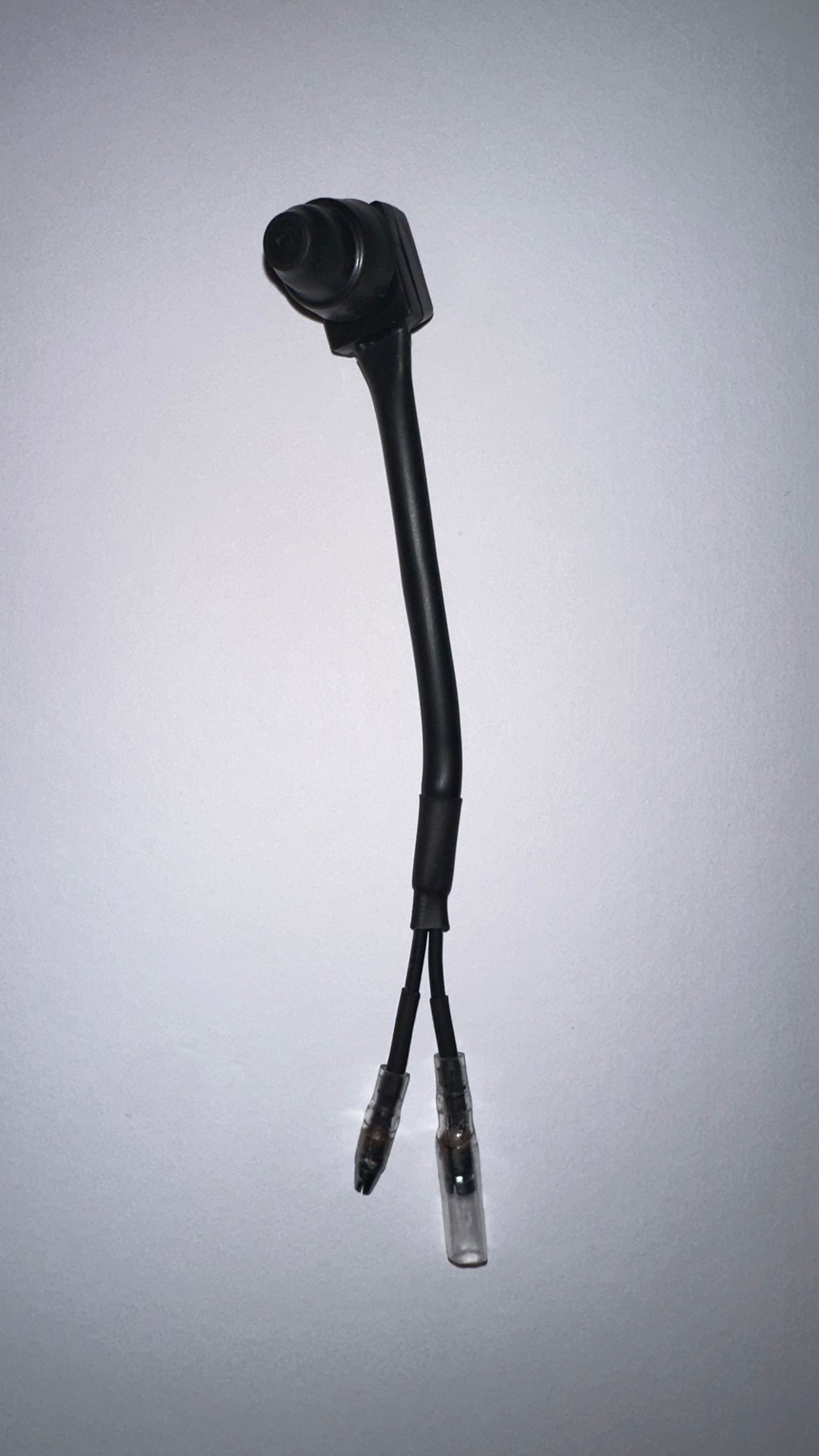

Push button switch - Push ON/ Push OFF

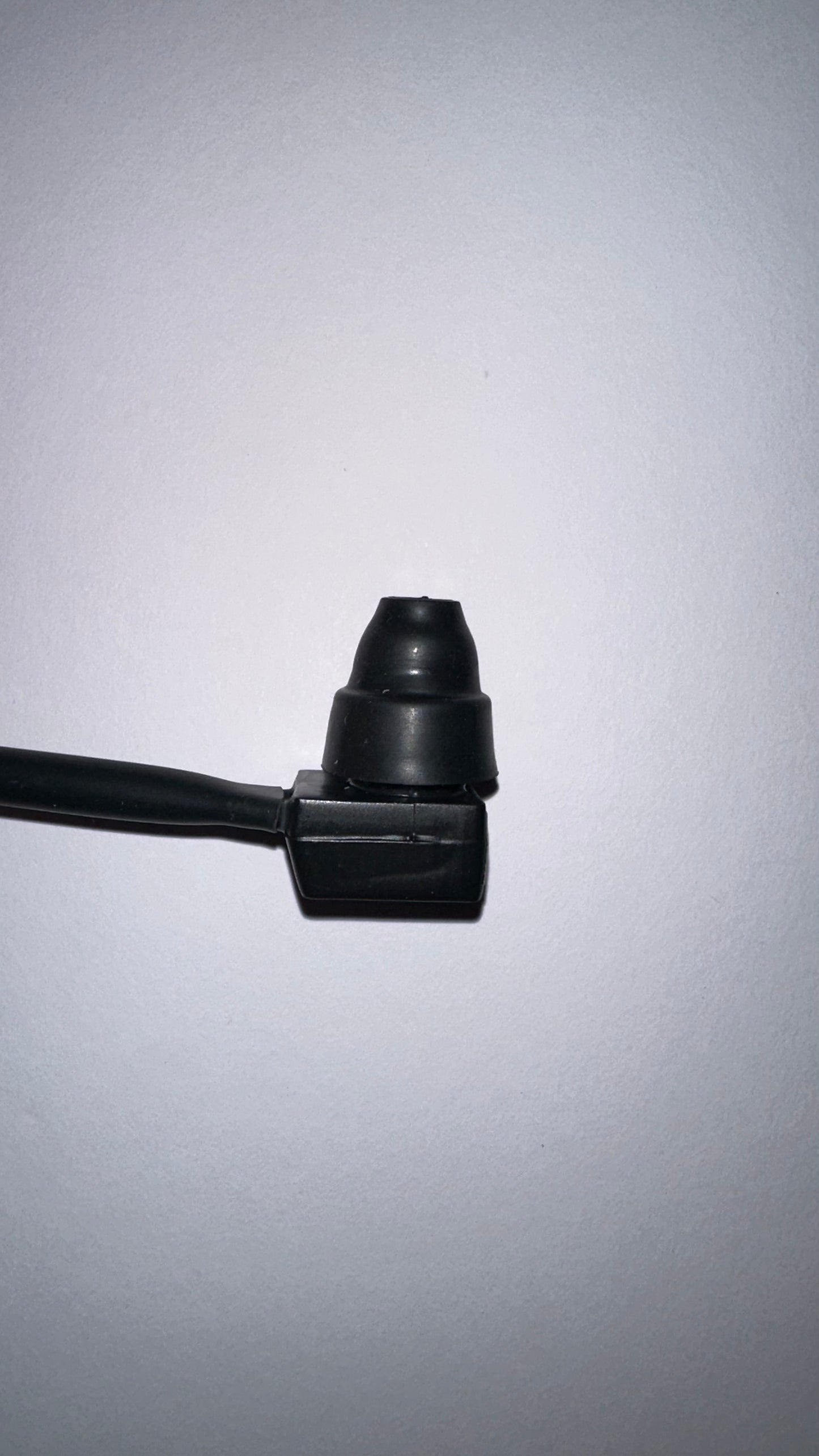

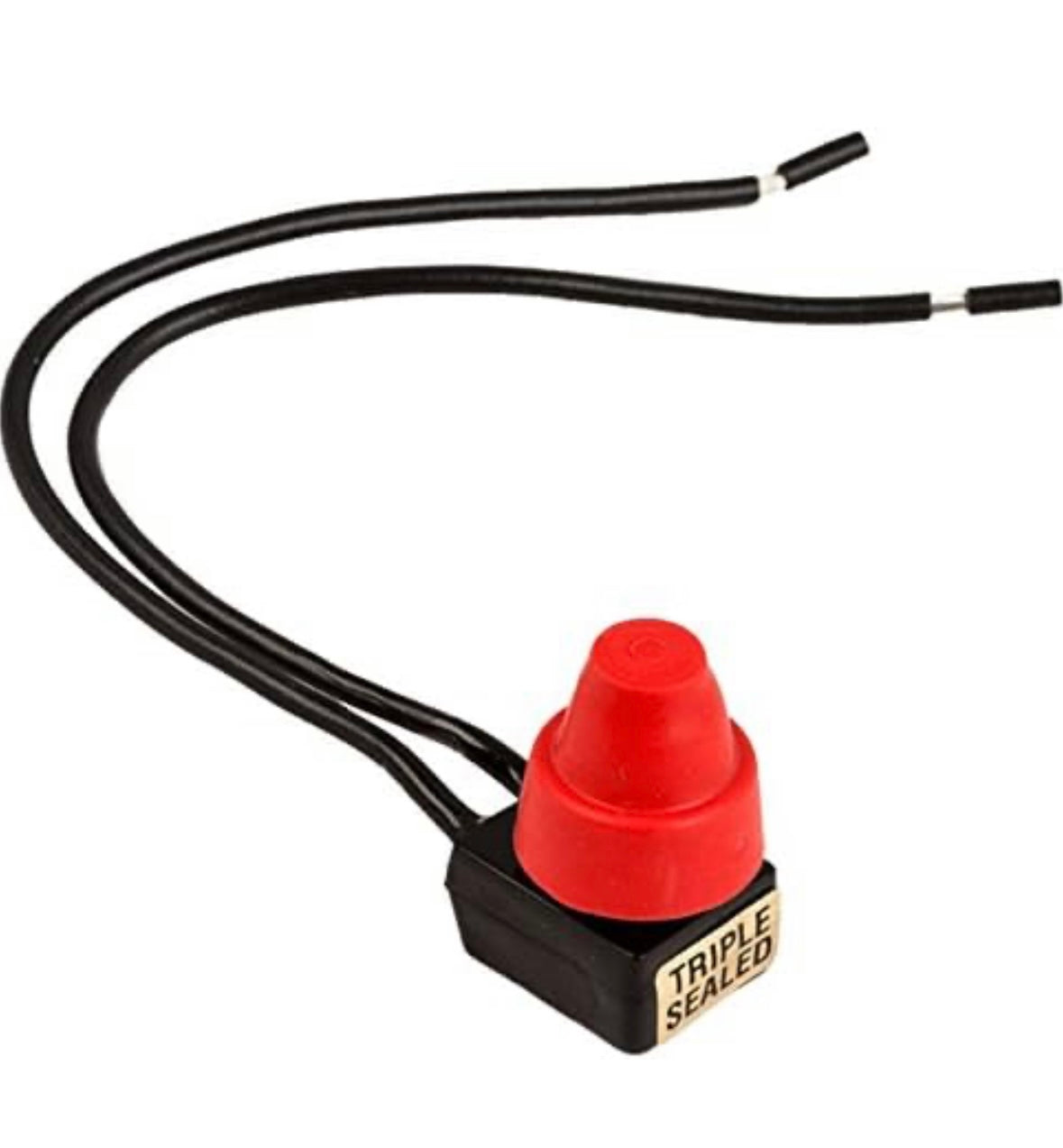

Miniature triple sealed K4 switch with black or red rubber boot.

Need a 3/8” hole for through panel mounting or purchase an aluminum switch tab from us to mount anywhere.

If you have a light that was purchased from another supplier, you can still use the Dim Switch - you will either need to add another ground wire off the light wiring or directly to the chassis.

Dim Switch will come with additional bullet terminals and a piece of Black 20 AWG TXL wire with a 1/4” ring terminal to use for the ground.

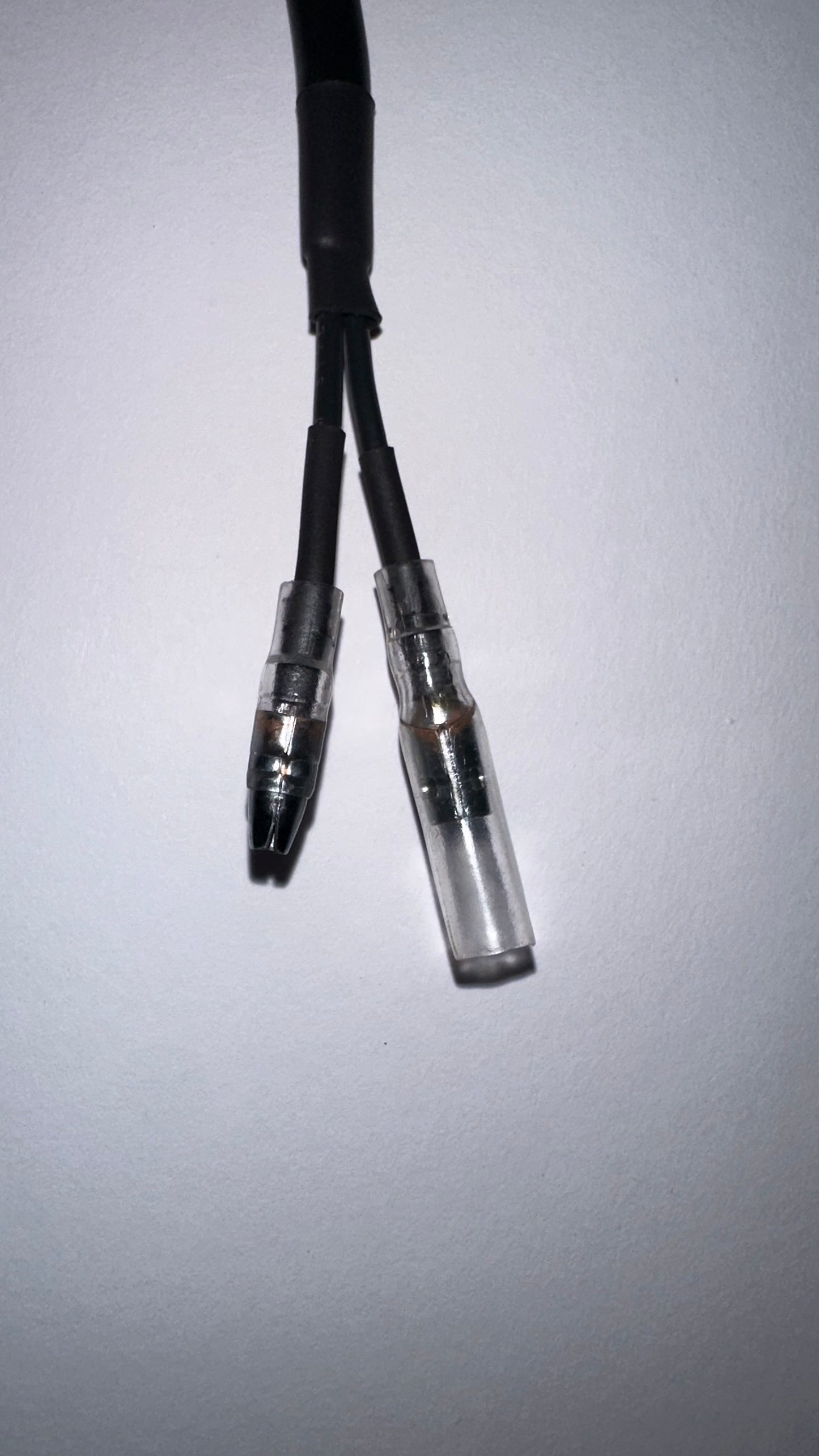

From the switch:

male bullet terminal - plugs into the Baja Designs light GREEN wire

female bullet terminal - plugs into the added ground BLACK wire (Source Offroad) or add a ground wire to the chassis (Non Source Offroad lights)

The Baja Designs Dim Feature:
With the Dim Switch you can utilize the built-in dimming feature found on XL Pro and XL80 LED Motorcycle Lights. This switch will easily dim the light from 100% to 80% percent output (20% difference). Please keep in mind the Baja Designs lights are not DOT approved or street legal. It is up to rider discretion if being used on the street.

Plug-N-Ride™ Technology - Comes with the OEM style connector for ease of installation and use.
